CSA Cooperation
Ground control and dynamics modelling of ISS-robots
(MSS)
Introduction

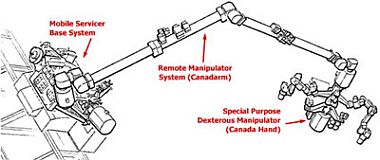

Canada's contribution to the International Space Station (ISS) is the
Mobile Servicing System (MSS), which is composed of the Mobile Remote
Servicer Base System (MBS), the Space Station Remote Manipulator System
(SSRMS) and the Special Purpose Dexterous Manipulator (SPDM).
Until now the planned mode of operations for SSRMS and SPDM is
teleoperation by an astronaut at the robotics workstation inside the ISS.
But it is predicted that this way to operate the MSS will consume a lot of
crew time because of the low velocities at which the SSRMS and SPDM will
be operated and because of the potentially large displacements to be
performed by these manipulators. As an alternative to reduce the load
imposed on the astronauts part of the MSS, operations on the MSS could be
conducted from a ground station. SSRMS and SPDM provide control modes that
would be suitable for ground operations. However, ground control is
hampered by communication link limitations such as time delays and reduced
bandwidth and by the lack of good situational awareness of the operator.
In this context, situational awareness refers to the operator's
knowledge of the spatial relationships amongst the work site equipment,
features and obstacles. Situational awareness is impeded in any remote
operation where the operator is limited only to equipment-mounted camera
views with which to perceive the work site. To overcome these limitations
a virtual reality approach is mandatory, which gives the operator the
realistic feeling having the robotic system always fully under control.
This requires a predictive graphical simulation of the entire robotic
system on the ground control system, to compensate the relatively high
data round trip time (more than 5-6 sec) as well as to provide an
easy-to-use user interface for programming, controlling, and supervising
the remote robot system. To ensure that MSS operations could be safely
carried-out from the ground, it is necessary to demonstrate the proposed
ground control technologies within a realistic environment.
Ground-Control Test-Bed
To validate the ground control concept for MSS in a representative
environment, a test-bed has been developed on which the MARCO system can
be integrated and tested. The objective is to faithfully reproduce the
interfaces and dynamics of MSS as well as the communication limitations.
One of the main components of the test-bed is the MSS Operation and
Training Simulator (MOTS): a real-time dynamics simulator currently used
for MSS operator training and for operation planning. It provides a high
fidelity simulation of MSS operations accurately emulating the rigid and
flexible body dynamics of MSS, its control software including the relevant
control modes and features as well as all relevant environmental effects.
To simulate MSS ground control from MARCO, CSA has added an interface to
MOTS that will allow it to receive commands and transmit telemetry in the
same fashion as the MSS will, through the ISS command and telemetry
servers.
MARCO
The Modular Architecture for Robot Control (MARCO) developed by DLR is
a spin-off of the ROTEX flight experiment conducted by DLR in 1993.
Subsequent to this experiment, the ground segment has been further
developed to add more and more capabilities to the system. Over the last
years, DLR has focused its work in space robotics on the design and
implementation of a high-level task-directed robot programming and control
system. The goal was to develop a unified concept for a flexible, highly
interactive, on-line programmable teleoperation ground station as well as
an off-line programming system, which includes all the sensor-based
control features partly tested in the ROTEX scenario. But in addition
to the former ROTEX ground station it should have the capability to
program a robot system at an implicit, task-directed level, including a
high degree of on-board autonomy.

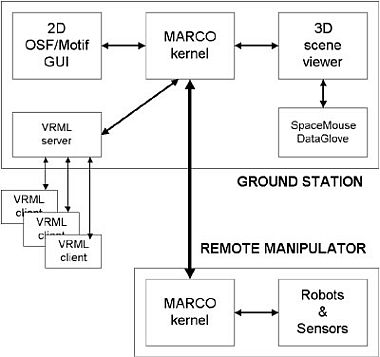

The current system provides a very flexible architecture, which
can easily be adapted to application specific requirements. To get the
robots more and more intelligent, the programming and control methodology
is based on an extensive usage of various sensors, such as cameras,
laser range finders, and force-torque sensors. It combines sensor-based
teleprogramming (as the basis for on-board autonomy) with the
features of telemanipulation under time delays (shared control
via operator intervention). Robot operations in a well-known
environment, e.g. to support or even replace an astronaut in
intra-vehicular activities, can be fully pre-programmed and verified
on-ground – including the sensory feedback loops – for further
sensor-based execution autonomously on-board. A payload user, who has
normally no expertise in robotics, can easily compose the
desired tasks in a virtual world. As man machine interface, a
sophisticated VR-environment with DataGlove and high-performance graphics
is provided.
By the way, MARCO can also be used as a telepresence system
without need of most of the graphical VR-environment. For service tasks in
an unknown or only partly known environment, e.g. catching and repairing a
failed satellite or assembling and maintenance of ISS modules, a high
amount of flexibility in programming and controlling is required.
Additionally the operator must have the impression to directly manipulate
the objects in the environment with the robotic system as a “prolonged
arm” into the space. For that task, the possibility to immediately
interact with the remote environment via haptic input devices and vision
feedback must be given.
In 1999, MARCO was used to teleoperate the robot manipulator on the
Japanese ETS-VII satellite. The improved MARCO system will be used now to
demonstrate that MSS operations could be safely carried-out from the
ground.
Programming and Control Methodology
A non-specialist user – e.g. a payload expert – should be able to
remotely control the robot system in case of internal servicing in a
space station (i.e. in a well-known environment). However, for external
servicing (e.g. the repair of a defect satellite) high interactivity
between man and machine is mandatory. To fulfill these requirements, the

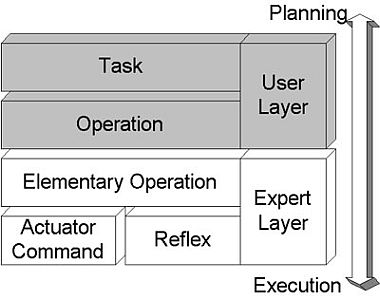

design of the programming system is based on a 2in2-layer concept,
which represents the hierarchical control structure from the planning to
the executive layer:
On the user layer the instruction set is reduced to ”what” has to be
done (planning level). No specific robot actions will be considered
at this task-oriented level. On the other hand the robot system has to
know, “how” the task can be successfully executed, which is described
in the expert layer (execution level).
Expert Layer
At the lowest system level, the sensor control mechanism is active. In
analogy to the human, we named it Reflex, which means that all
the actions, initiated and performed at this level, will be executed fully
automatically. A teaching by showing paradigm is used at this layer to
show the reference situation, which the robot should reach, from the
sensor’s view: in the virtual environment the nominal sensory
patterns are stored and appropriate reactions (of robot
movements) on deviations in the sensor space are generated. The
expert programming layer is completed by the Elemental Operation
(ElemOp) level. It integrates the sensor control facilities
with position and end-effector control. In telemanipulation mode, the user
generates position commands and selects the appropriate sensor control
strategies for path refinement (shared control).
User Layer
The task-directed level provides a powerful man-machine-interface
for a lowbrow user, which is not so familiar with robotics. An
Operation is characterised by a sequence of ElemOps, which hides
the robot-dependent actions. For the user of an Operation the
manipulator is fully transparent. This means, that the user don’t
worry about the robot, what it is exactly doing, i.e. the robot action is
apparently a “hidden” one. To apply the Operation level, the user has
to select the object/place, he wants to handle, and to start the
Object-/Place-Operation: via a 3D-interface (DataGlove or SpaceMouse) an
object can be grasped and moved to an appropriate place. After the user
has moved all the objects to their target locations, the execution of the
generated Task can be started. The system provides status information and
comprehensive quick look displays for task execution monitoring
purposes.
Control of MSS
To validate the concept of operating MSS from ground, a demonstration
scenario has been designed, where the MARCO software is used to drive the
MSS Operations and Training Simulator (MOTS). The MARCO system has been
adapted to the command and telemetry interfaces of MOTS via an interface
task at the MARCO control station.
System interfaces

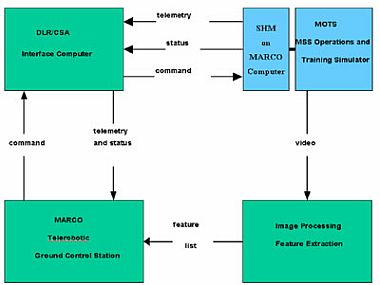

To establish the command and telemetry data transmission links, the
DLR’s telerobotic system has been interfaced to MOTS via a client-server
communication. To do the communication transparent to the origin MARCO
system, an interface-computer was installed, which acts as a data
transformation station between MARCO and MOTS. That means that the MARCO
interface structure has been adapted to the existing MOTS interfaces and
their timing. This approach has been proven very well during the ETS-VII
space robot mission.
MOTS is used as a dynamic engine to close control loops on the ground
simulation with the same behavior as expected on the real SSRMS in space.
The current input devices, as SpaceMouse or DataGlove will be complemented
by two joysticks, one for position and the other one for orientation
control of the manipulator, to build a high fidelity replica of the
on-board user interface.
This configuration is suitable to provide all the functionalities
to telemanipulate the SSRMS as the astronauts will do it. In addition to
that we can demonstrate MARCO’s control features such as task
decomposition, path planning, collision avoidance, redundant kinematics,
sensor based control, and shared control. The MARCO architecture for
controlling robots in space includes all the features to program, control,
and supervise the MSS on the ISS. Various teleoperation modes are
available from direct telemanipulation to task-oriented programming and
execution.
Sensor-based local autonomy
As demonstrated
a few years ago in the ROTEX experiment, the predictive graphics approach,
which also includes the simulation of all the available sensors
(force-torque, distance, vision, or s.th. else), is a very helpful tool to
test and verify the local control loops, based on sensory data, even
on-ground. In spite of the lack, that MARCO cannot install its own
controllers on-board the ISS, it would be possible, to do autonomous task
with the MBS, e.g. using the vision systems, mounted on the SSRMS. All the
objects, which can be grasped by the end-effector (EE) of the SSRMS, are
equipped with a Power and Data Grabble Fixture (PDGF). Also the SSRMS
itself is attached to the ISS via such a PDGF: PDGFs are round,
antenna-like devices, designed for mechanical actuation and electrical,
power, data transfer to, and from, a variety of devices and payloads
through two pairs of umbilical connectors. Power and data connections will
be supplied to, and from, either end of the SSRMS as well as to and from
any payload equipped with a PDGF. The PDGF also services at the base for
the SSRMS and SPDM. Many of them will be located around the Station’s
external structure, allowing the arm to literally walk hand-over-hand. A
PDGF has a target marker to support the astronauts during telemanipulation
of the SSRMS (see the target pin with the two crossed lines in the framed
region of Figure 4).
Similar to the approach as verified in the ETS-VII mission, this
“operational” marker can be used to automatically bring the EE into a
position, from where the PDGF can easily be attached. Image analysis
generates the required commands to align the EE with the PDGF. Expressed
in the MARCO terminology, this visual servoing task can be considered as a
reflex. Assume, a correct model of the PDGF markers and the cameras is
available, MARCO provides the simulation environment, to prepare, test,
and verify the entire visual servoing task fully on-ground without
connecting the real space system.
Currently we have to implement the autonomous behaviors, i.e. MARCO’s
reflex layer, on-ground with all the limitations concerning the up- and
down-link communications. Similar to the work on ETS-VII, we apply a
move-and-wait strategy, getting the actual video images, extracting the
PDGF markers, and generating appropriate motion commands, which will be
sent to the on-board robot (see Figure 2). Actually, in the MARCO
philosophy, the reflex layer is located at the lowest execution level (see
Figure 1), i.e. “near” the robot controller, which really should integrate
all the local control loops, such as autonomous visual servoing. For the
future, it would be nice to have the possibility to integrate the reflex
layer into the SSRMS on-board controller.
Another application for vision-based path refinement could be an active
vibration damping, using the same visual servoing approach as described
above. Due to the inherent oscillations on the Tool Center Point (TCP) of
the SSRMS – the length of the SSRMS is about 17 meters – it would be very
helpful, especially time-saving for the operator, if a desired motion
stops more quickly as done without active damping.
Path planning
In the current schedule for the SSRMS activities performed via
telemanipulation by the astronauts, most of the tasks will be transfer
motions of mounting parts from the shuttle’s cargo bay to a destination
point on the ISS. Anybody could imagine, that these tasks are very
time-consuming as well as difficult to do, because the SSRMS has to be
reconfigured many times during the transfer motion. That means, that only
6 joints of the SSRMS can be used during an arm motion, because the 1st or
2nd joint is always locked. Therefore we propose to plan the whole path
on-ground, using the geometric model of the shuttle, the SSRMS and the ISS
using all the 7 joints of the SSRMS, and to execute it autonomously
on-board, supervised by the ground control station, sure. The path
planning component, integrated in MARCO, uses a fast method with linear
complexity in the number of degrees of freedom (DOF). It proved to be very
efficient as it omits a complete representation of the high-dimensional
search space. Opposite to most of the known path planning approaches e.g.,
whose complexities reach from a quadratic to a exponential one, it can be
applied also for robots with any number of DOFs.
Redundant kinematics
Additionally to the path planning approach, which uses all the 7 DOFs
of the SSRMS, a redundant mode could be very useful during Cartesian
movements. Imagine, the operator would like to move the TCP a little bit
further, but one of the long links of the SSRMS would collide with another
part of the ISS. Then the operator has to switch into a joint level mode,
to reconfigure the SSRMS into a position, from where the motion wouldn’t
collide. But every joint level mode will change the current TCP, which
could be undesirable, because the SSRMS should hold the current TCP
position. Otherwise collisions between the carried object, attached to the
TCP and another part could occur. Similar to the human arm, a redundant
motion holds the TCP and moves the arm links into a configuration which is
suitable for proceeding with the current motion task.
Telepresence application
For service tasks on ISS, e.g. maintenance of the resp. modules, a high
amount of flexibility in programming and controlling is required.
Additionally the operator must have the impression to directly manipulate
the objects in the environment with the robotic system as a “prolonged
arm” into the space. For such jobs, the possibility to immediately
interact with the remote environment via haptic input devices and direct
vision feedback should be given. The respective requirements for
telepresence applications can easily be fulfilled by the MARCO control and
programming features. But this requires another kind of communication
infrastructure aboard ISS than the existing one. Currently, we study the
feasibility of establishing exactly this communication structures on the
European part of ISS, to provide direct communication links (data and
video) with significantly reduced time delays (from several seconds to
approximately a few hundreds of milliseconds).
