Realtime Simulation
Robot design optimization
In the EU-project RealSim (Real-time Simulation for Design of
Multi-physics Systems) DLR and KUKA worked together to develop methods and
tools that ease the design of new robots or of variants of existing robots
by taking into account the interaction of mechanics, electronics and
software systems of a robot early in the design phase. The goal is to
reduce development cost and time and improve robot performance. It is
planned to include step after step the developed and demonstrated

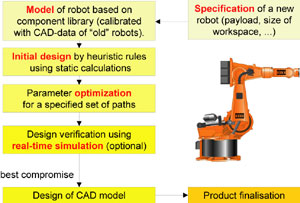

technology into the actual design process at KUKA. The figure sketches the design process.
After the initial specification of the robot (desired payload, work space,
etc.), a first model of the robot is created. In a robot component
library, the data of older designs are available, that can be directly
utilized or served as a reference. The initial design is carried out
following heuristic rules, e.g., by “static” calculations to check the
joint torques in different arm configurations and adjust the kinematic
parameters. The initial design is followed by a MOPS design optimization phase in which a good
compromise candidate is determined by minimizing the maximum of a set of
(appropriately scaled) criteria for a set of typical industrial tasks.
Finally, the design can be verified in a real-time simulation using the
actual robot control hardware, replacing the not-yet-existing robot by a
real-time simulation.
Real-Time Simulation
The core for robot optimization are flexible, detailed robot models.
These are difficult to obtain because multi-domain models are required,
containing components from multi-body systems, drive trains, electrical
systems and controllers. Furthermore fast simulations are essential for
optimization in rapid control prototyping and hardware in the loop
simulations.A robot component library is the core for all design phases in

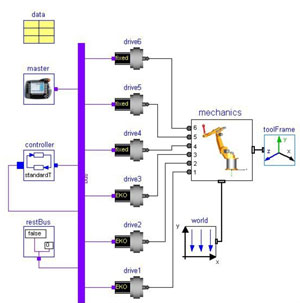

order to describe the robot. A typical robot model is shown in the figure.
It is based on the free, object-oriented modeling language Modelica.
Modelica models are simulated with the commercial simulation package
Dymola from the Swedish company Dynasim. In the RealSim project, Dynasim
and DLR developed together new algorithms for the real-time simulation of
stiff differential-algebraic equation systems in order that detailed robot
models can be simulated in real-time. For the robots under consideration
these algorithms give a speed-up of at least 15 with respect to standard
integrators, such as the explicit or implicit Euler method with fixed
step-size used in real-time simulations but also with respect to the
state-of-the-art offline variable-step integrator DASSL. The basic idea is
that stiff variables are discretized with the implicit Euler method, other
variables with the explicit Euler method and that the symbolic algorithms
of Dymola are applied on the discretized model equations.
These
developments have been demonstrated at the 2001 Hanover fair. The figure
shows on application of the proposed real-time models. The standard KUKA
control system, including the KUKA control panel seen in front, controls a
virtual robot instead of the real robot. This virtual robot is based on a
real-time simulation of a detailed Modelica robot model (about 80
differential + 1000 algebraic equations) together with a CAD data based
online animation to get immediate visual response together with process
data visualization, such as path deviations or end effector
vibrations.
